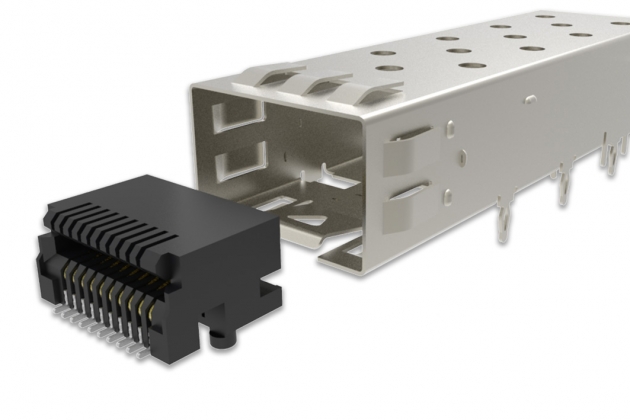

• SFP+ Cage 1

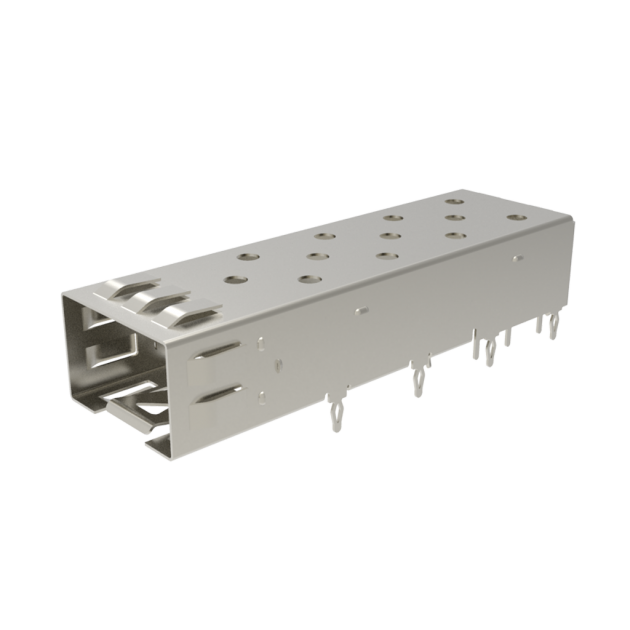

  • SFP+ Cage 2

SFP+ Cage

    • Production information
    Features
    • Insertion Loss : Differential Pair Signaling 10Gbps@-0.3dB
    • Pitch : 0.8 mm
    • Pin : (N / A)
    • Height : 9.7 mm
    • Application : Server,Storage,Switch
    Materials
    • Shield : Copper Alloy
    Electrical
    • Current Rating : 0.5A / Per Pin Max.
    • Voltage Rating : 30V AC(RMS) / DC Max.
    • Insulation Resistance : 5000mΩ
    • Contact Resistence : 0.5 mΩ Max.
    Mechanical
    • Transceriver Insertion Force SFP+ module to
               PCB Connector and SFP+ Cage 34N Max.
    • Transceriver Extraction Force SFP+ module to
               PCB Connector and SFP+ Cage 12.5N Max.
    • Press-Fit Insertion Force : 44.5N Max.
    • Press-Fit Extraction Force:8.9N Max
    Environmental
    • Operation Temperature : -55℃ to +105℃
