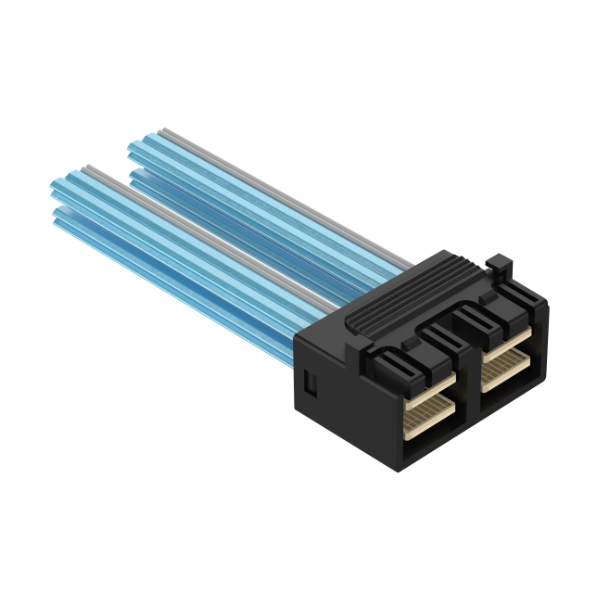

Int. mini SAS HD 8i 72Pos STR Cable / SFF-8643 / SAS 3.0 12Gbps

Production information
OVERVIEW

IAT's mini SAS HD product series meet SAS 2.1 standard and SAS 3.0 speed and density requirements. The low-profile system provides 4x and 8x cable-plug options, and the external I/O connectors include eight sideband signals per 4x port. Our connectors mate to all current mini SAS HD cable assemblies. Additionally, these connectors and cables are the chosen interface for the PCI Express (PCIe) External Cable Work Group’s Generation 3 Cable specification.


FEATURES AND BENEFITS


Connectors mate to 4x or 8x cable assemblies
Capability to internal and external cable

Fully integrated press-fit receptacle design

Provides one-step placement to PCB

Cables are compliant with SAS-3 (12Gbps) systems with InfiniBand† (10Gbps), Ethernet (10Gbps) and other protocols

Meets next-generation as well as many existing industry standards



APPLICATIONS

Data /Communications

  • RAID (Redundant Arrays of Inexpensive Disks)
  • Workstations
Networking
  • Rack-mount server
  • Servers
  • Storage rack
Telecommunications
  • Switches
